Harmonic Control
Dynamic SVG Generator
Dynamic reactive power compensation equipment for fast power factor correction, imbalance compensation and stable power quality.
Product introduction
Overview

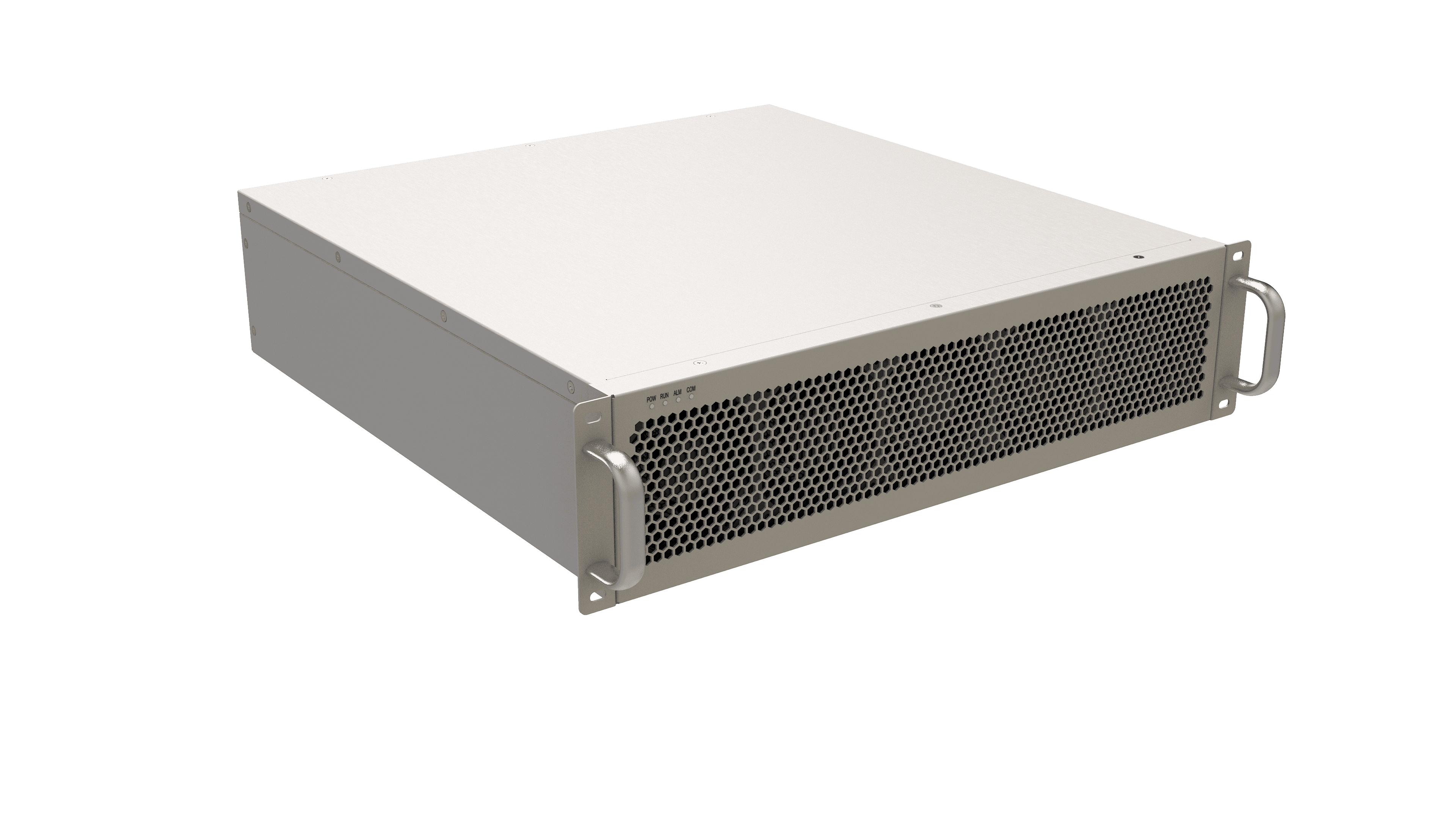

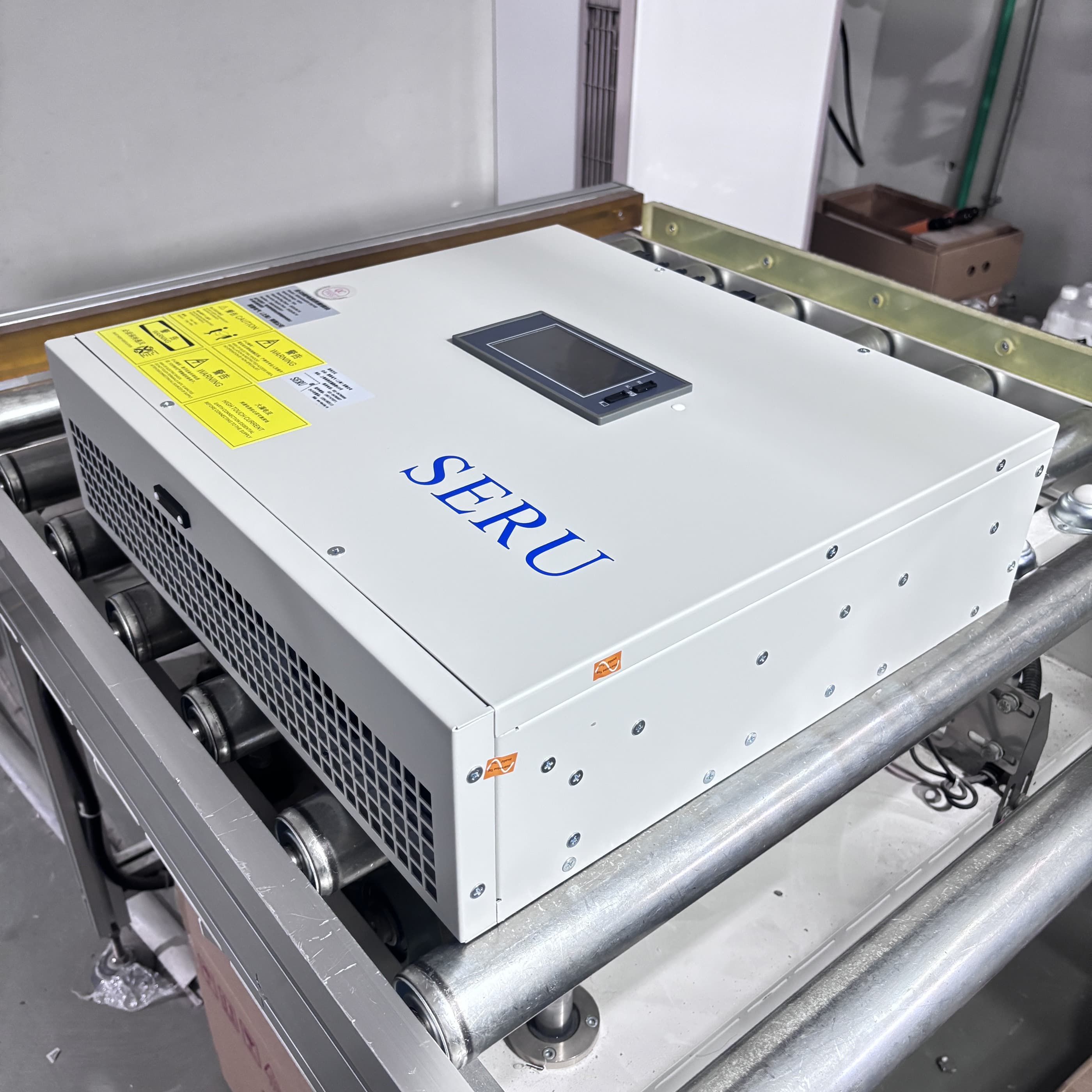

SERU / CE Series SVG modules are low-voltage power quality devices for 400 V distribution systems. Based on a three-level topology, they dynamically generate compensation current to improve reactive power balance, three-phase current balance and overall power quality.
Applications
- Dynamic reactive power compensation
- Power factor correction for industrial facilities
- Three-phase current imbalance compensation
- Neutral current reduction
- Distribution systems with rapidly changing loads
Key notes / features
- Suitable for 400 V systems with +/-20% voltage range
- Supports three-phase three-wire and three-phase four-wire configurations
- Reactive power compensation target adjustable from -1 to +1 within device capacity
- 100% three-phase imbalance compensation capability
- Response time <=10 ms
- Supports RS485 communication with Modbus protocol
Parameters / technical notes
- Module frame sizes include 480 mm and 500 mm.
- Supports connection of up to 12 module groups.
Project enquiry
Discuss dynamic svg generator requirements.
Include voltage level, load type, site condition and target power quality requirement when contacting SERU Electric.
